Transition Relay Carbon GX

Buyers in the USA are responsible for arranging their own shipping. For more information, please contact the shop directly.

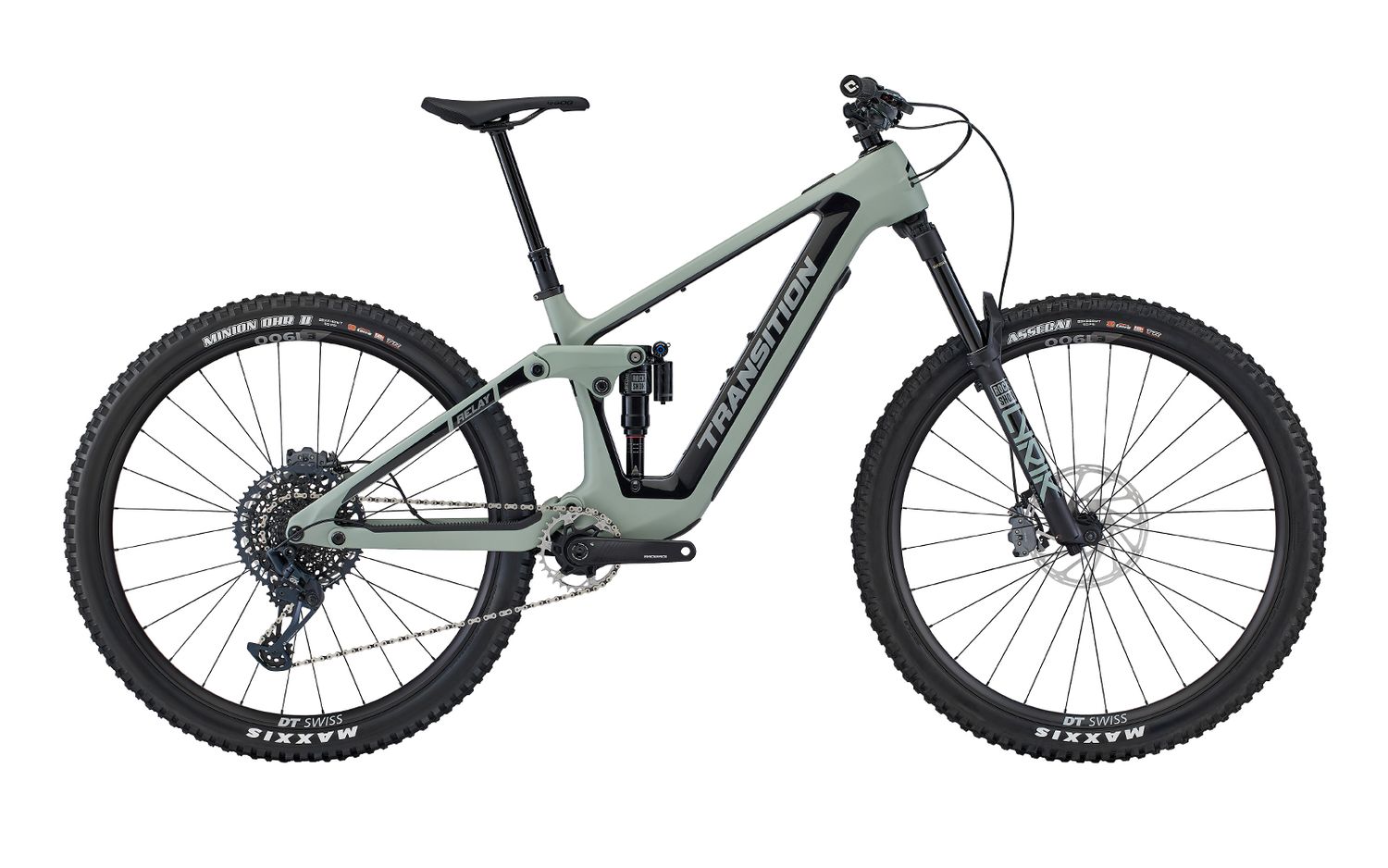

Transition Relay Carbon

SPECIAL ORDER ONLY, PLEASE CALL TO ORDER

Complete spec list and geometry available at transitionbikes.com.

Frameset

• Frame: Relay Carbon, 160mm travel

• Fork: RockShox Lyrik Select+

• Rear Shock: RockShox Super Deluxe Select+

Drive System

• Drive Unit: Fazua Ride 60

• Battery: Fazua Energy 430 (Take Out)

• Display: Fazua Top Tube LED Hub

• Assist Switch: Fazua Ring Control

Components

• Headset: FSA No.55R

• Stem: ANVL Swage (40mm)

• Handlebar: ANVL Mandrel Alloy 35

• Grips: ODI Elite Flow Lock-On

• Saddle: SDG Bel Air 3 LUX

• Seatpost: OneUp Dropper Post

• Brakes: SRAM Maven Bronze

• Rotors: SRAM Centerline (200mm)

Drivetrain

• Shifter: SRAM GX Eagle Single Click

• Rear Derailleur: SRAM GX Eagle

• Cassette: SRAM XG 1275 (10–52t)

• Chain: SRAM GX Eagle

• Crank: RaceFace Aeffect ETOR

• Chainring: SRAM XX Direct Mount (32t)

Wheels

• Rims: DT Swiss E 1900 Spline 30

• Spokes: DT Swiss Champion

• Hubs: DT Swiss 370 Ratchet LN

• Front Tire: Maxxis Assegai 3C EXO+ (2.5)

• Rear Tire: Maxxis Minion DHRII 3C EXO+ (2.4)

• Included: Fazua Charger, Tubeless Valves & Sealant

• Weight: 43.10 lbs / 19.55 kg (Size MD, including battery)

Experience power-assisted versatility on the Transition Relay, combining enduro-level suspension with a streamlined e-drive system to tackle big climbs and rowdy descents alike.
