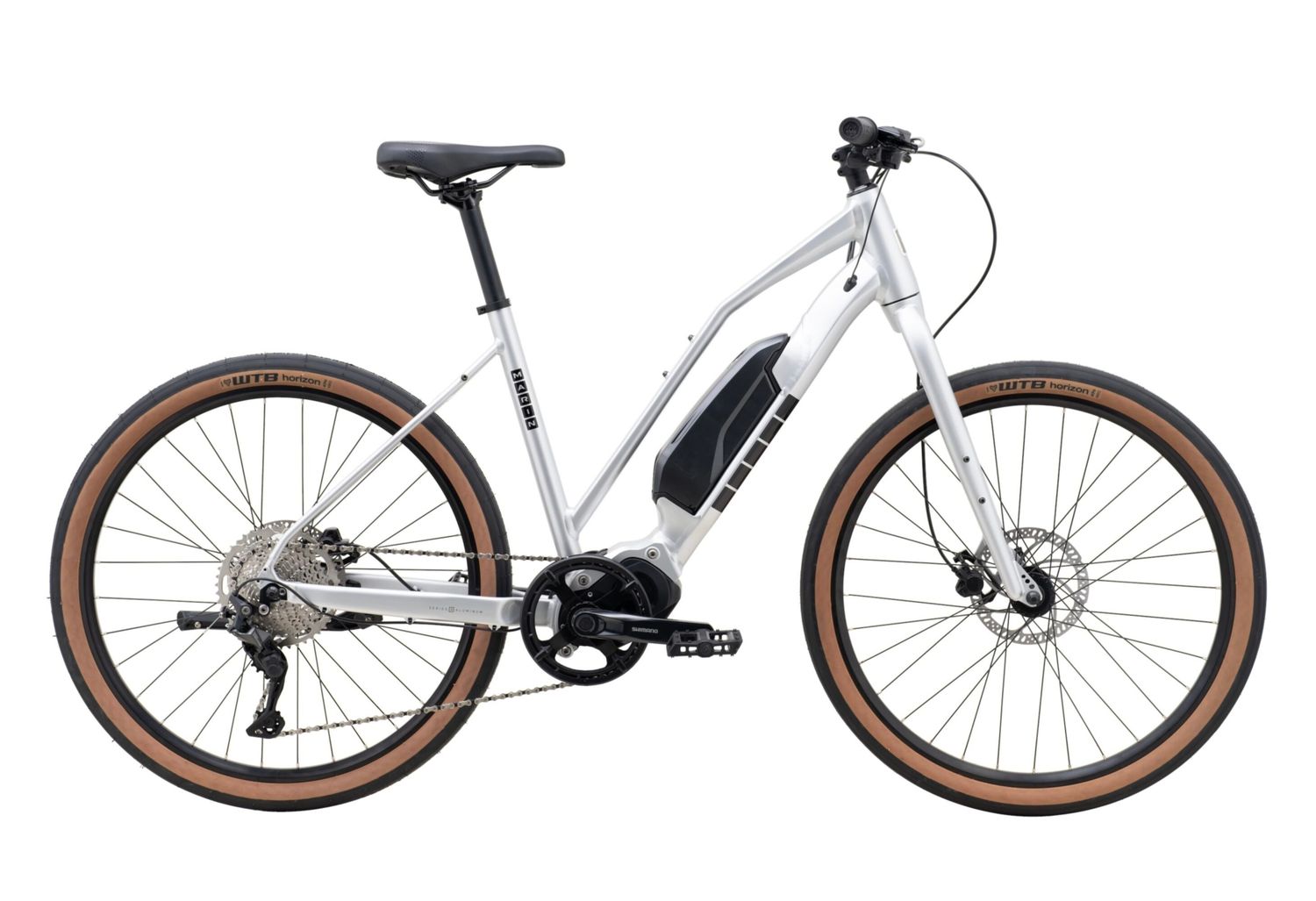

Marin Sausalito ST E1

SPECIAL ORDER ONLY

Complete spec list and geo available at marinbikes.com.

• Frame

  Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

• Front Suspension

  Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

• Rims

  Marin Aluminum Double Wall, Disc Specific

• Hub, Rear

  Forged Alloy, Disc Specific, 32H

• Hub, Front

  Forged Alloy, Disc Specific, 32H

• Spoke, Nipples

  14g Black Stainless Steel

• Tires

  WTB Horizon, 650Bx47, Wire Bead

• Derailleur, Rear

  Shimano Deore 10-Speed

• Derailleur, Front

  -

• Shift Lever

  Shimano Deore 10-Speed

• Crankset

  Shimano, Aluminum w/ 44T Steel Chairing

• Motor

  Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1

• Bottom Bracket

  -

• Chain

  KMC X10E

• Cassette

  Shimano Deore 10-Speed 11-46T

• Brake, Front

  Tektro HD-M275 Hydraulic Disc, 180mm Rotor

• Brake, Rear

  Tektro HD-M275 Hydraulic Disc, 180mm Rotor

• Brake Levers

  Tektro Hydraulic

• Handlebar

  Marin MiniRiser Alloy

• Stem

  Marin Alloy

• Grips

  Marin County

• Headset

  FSA No. 57E

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin City Plush

• Pedals

  Nylon Platform

• Kickstand

  Rear Mount Alloy

• Battery

  Shimano BT8014, 418Wh

• Range, Charging Time

  22-62 miles/35-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 4 Hours (estimated, under ideal conditions)
