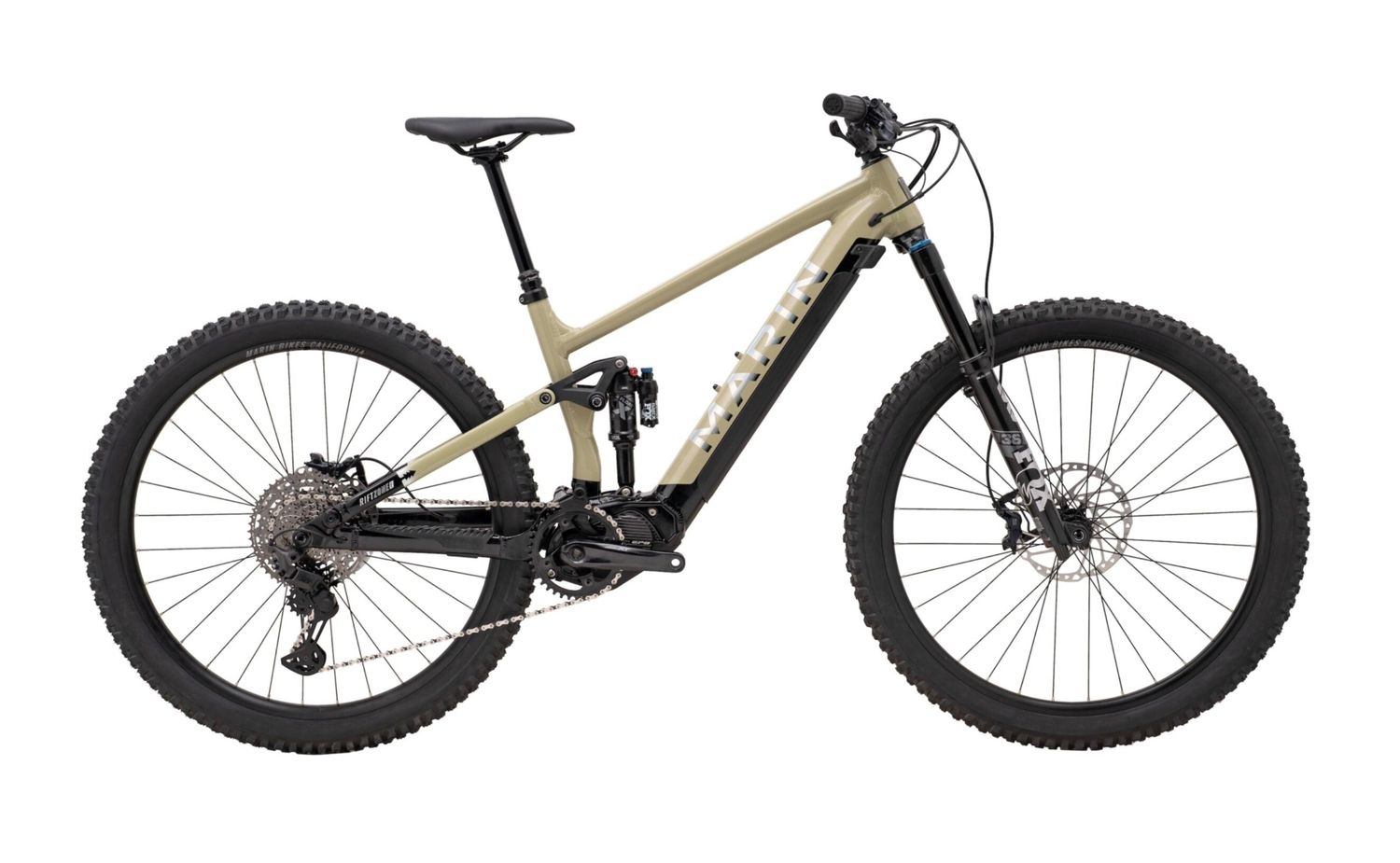

Marin Rift Zone E2 29"

Specifications

Frame & Suspension

• Frame: All-New Series 4 Alloy, 140 mm MultiTrac Suspension, integrated battery/charging port, 148 mm rear thru-axle, built-in rear speed sensor
• Fork: Fox 36 Performance Elite, 140 mm travel, 29", 110×15 mm Boost Kabolt thru-axle, 44 mm offset, integrated Fox fender
• Shock: Fox Float X Performance Elite, EVOL air spring, climb switch, rebound adjustment, custom tune, 210×55 mm (M8×30 mm top / M8×25 mm bottom)

Wheels & Tires

• Rims: Marin aluminum double wall, 29" diameter, 29 mm inner width, sleeved joint, disc-specific, tubeless-compatible
• Hubs:
  • Front – Shimano FH-TC500, 110×15 mm, Centerlock, 32H
  • Rear – Shimano HB-TC500, 148×12 mm, Centerlock, standard freehub body
• Spokes: 14 g black stainless steel
• Tires: Vee Tire Co. Attack HPL, 29×2.5", Top 40 tubeless-compatible, Override E-specific casing

Drivetrain

• Rear Derailleur: Shimano Deore XT RD-M8130, 11-speed, SGS, LinkGlide
• Shifter: Shimano Deore XT SL-M8130-R, LinkGlide, I-Spec EV
• Crankset: Shimano XT M8150, 160 mm, 38T chainring
• Chain: KMC E-11S
• Cassette: Shimano XT LinkGlide LG-600, 11-speed, 10–50T

E-Bike System

• Motor: Shimano Steps EP801, 250 W, 85 Nm
• Battery: Shimano BT-EN806, 630 Wh internal
• Display: Shimano SC-E600
• Switch: Shimano SW-EN600L (LH assist mode switch)

Brakes

• Front & Rear: TRP DH-R EVO 4-piston hydraulic, 203 mm rotors (2.3 mm thick)
• Rear Rotor: With magnet for speed sensor
• Brake Levers: TRP DH-R EVO

Cockpit

• Handlebar: Marin Trail, 35 mm clamp, 7000 alloy, 800 mm width, 20 mm rise, 5° up / 8° back sweep
• Stem: Marin CNC, 35 mm length, 35 mm bore
• Grips: Marin Grizzly lock-on
• Headset: FSA No. 57, sealed cartridge bearings, 1 1/8"–1 1/2"

Seat & Pedals

• Seatpost: X-Fusion Manic, 1x composite remote
  • S: 125 mm travel
  • M/L: 150 mm travel
  • XL: 170 mm travel
  • 30.9 mm diameter
• Saddle: Marin e-MTB saddle
• Pedals: Marin MTB plastic

Extras

• Shimano battery charger EC-E6002 (2A)
• Shimano CS-EN800 chainguide
• CushCore tire inserts with valve stems
• Marin tire sealant (300 ml)
• Squeeze-top cap with valve core removal tool

Range & Charge Time

• Range: 30–80 km (varies with rider weight, terrain, climate, and assist mode)
• Charging Time: Approx. 11 hrs (ideal conditions)
