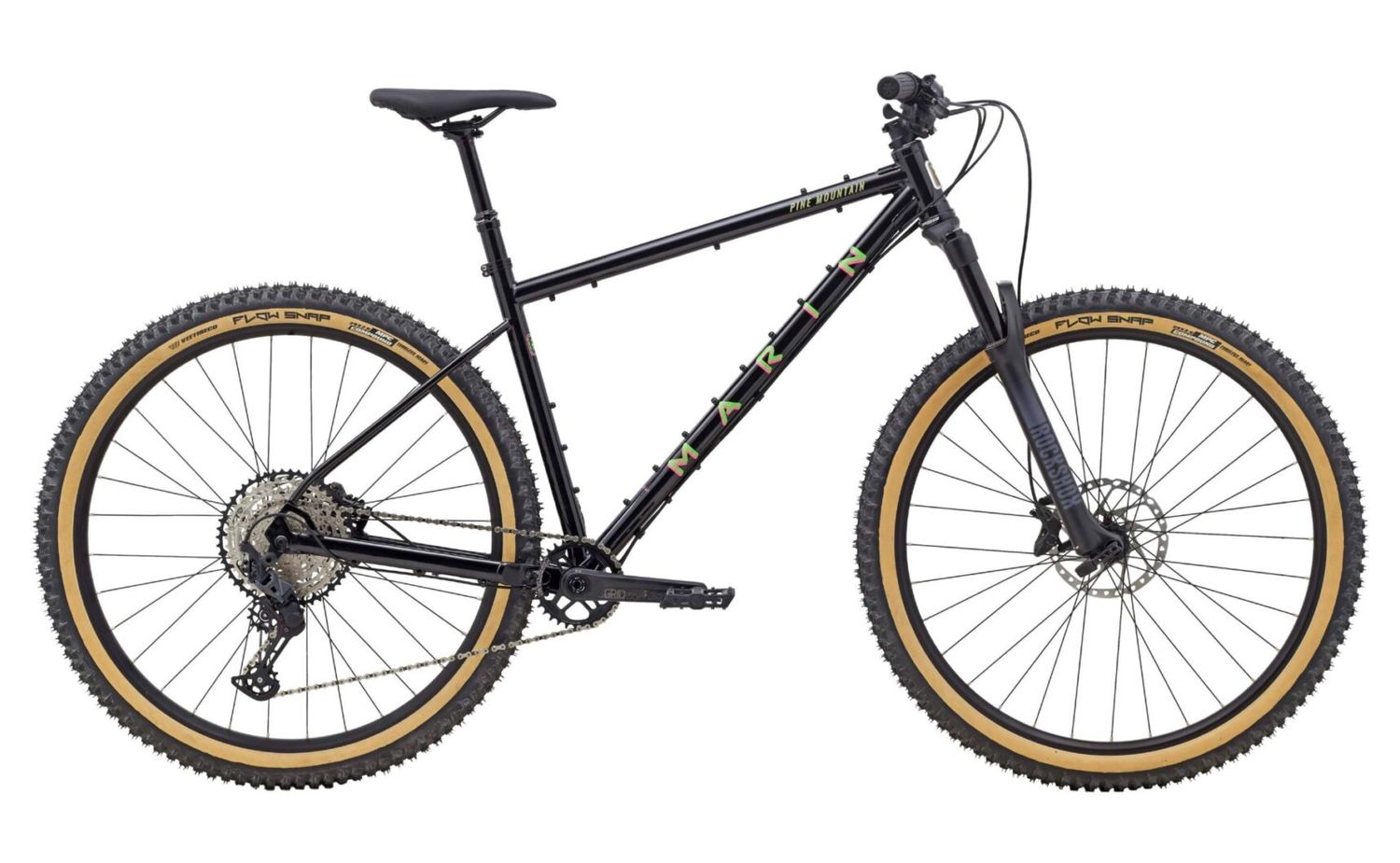

Marin Pine Mountain 2 29"

Buyers in the USA are responsible for arranging their own shipping. For more information, please contact the shop directly.

Frame

• Series 3 Double Butted and Heat Treated CrMo
• 29" Wheels
• Custom Cast Boost 148x12mm Dropouts
• 148x12mm Thru-Axle
• 73mm Threaded Bottom Bracket
• Plentiful Gear Mounts (custom bag templates available)

Front Suspension

• RockShox 35 Gold RL
• 120mm Travel
• DebonAir Air Spring
• Alloy Tapered Steerer
• 110x15mm Boost Spacing
• Maxle Lite
• 44mm Offset

Wheels

• Rims: Alloy Double-Wall, Offset Spoke, 32mm Internal Width, Tubeless Compatible
• Rear Hub: Forged Aluminum, 148x12mm, Centerlock Disc, 32H
• Front Hub: Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H
• Spokes/Nipples: 14g Black Stainless Steel
• Tires: Vee Tire Co. Flow Snap, 29x2.6", Folding Bead, Tubeless Ready

Drivetrain

• Rear Derailleur: Shimano SLX RD7100, 12-Speed
• Shifter: Shimano SLX SL7100, 12-Speed
• Crankset: FSA Grid Modular 1x with 32T Direct Mount MegaTooth Chainring
• Bottom Bracket: FSA Outboard Cartridge Bearings
• Chain: KMC X12
• Cassette: SunRace 12-Speed, MicroSpline, 10-51T

Brakes

• Front Brake: TRP Slate EVO, 4-Piston Hydraulic, 180mm Rotor
• Rear Brake: TRP Slate EVO, 4-Piston Hydraulic, 180mm Rotor
• Levers: TRP Slate EVO

Cockpit

• Handlebar: Marin Bedroll Bar – 50mm Rise, 780mm Width, 10˚ Backsweep, 6˚ Upsweep
• Stem: Marin 3D Forged Alloy, 35mm
• Grips: Marin Bear Paw Locking
• Headset: FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"

Seatpost & Saddle

• Dropper Post: TranzX YSP23 with 1x Remote
  • Size S: 150mm Travel
  • Other Sizes: 170mm Travel
  • Diameter: 30.9mm
• Saddle: Marin Pine Mountain Trail

Other Components

• Pedals: Nylon Platform
• Extras: Bolt-On Thru-Axle
