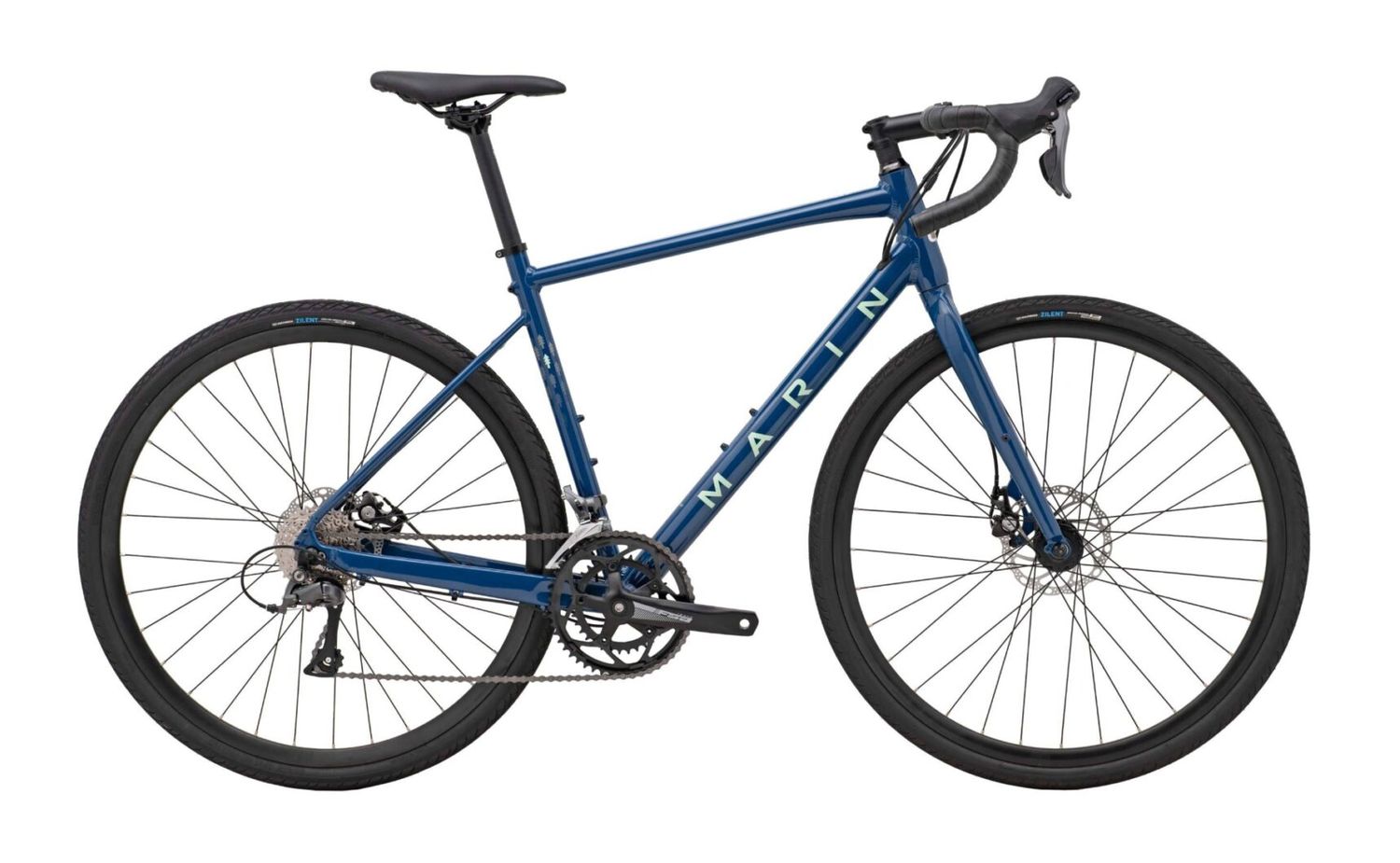

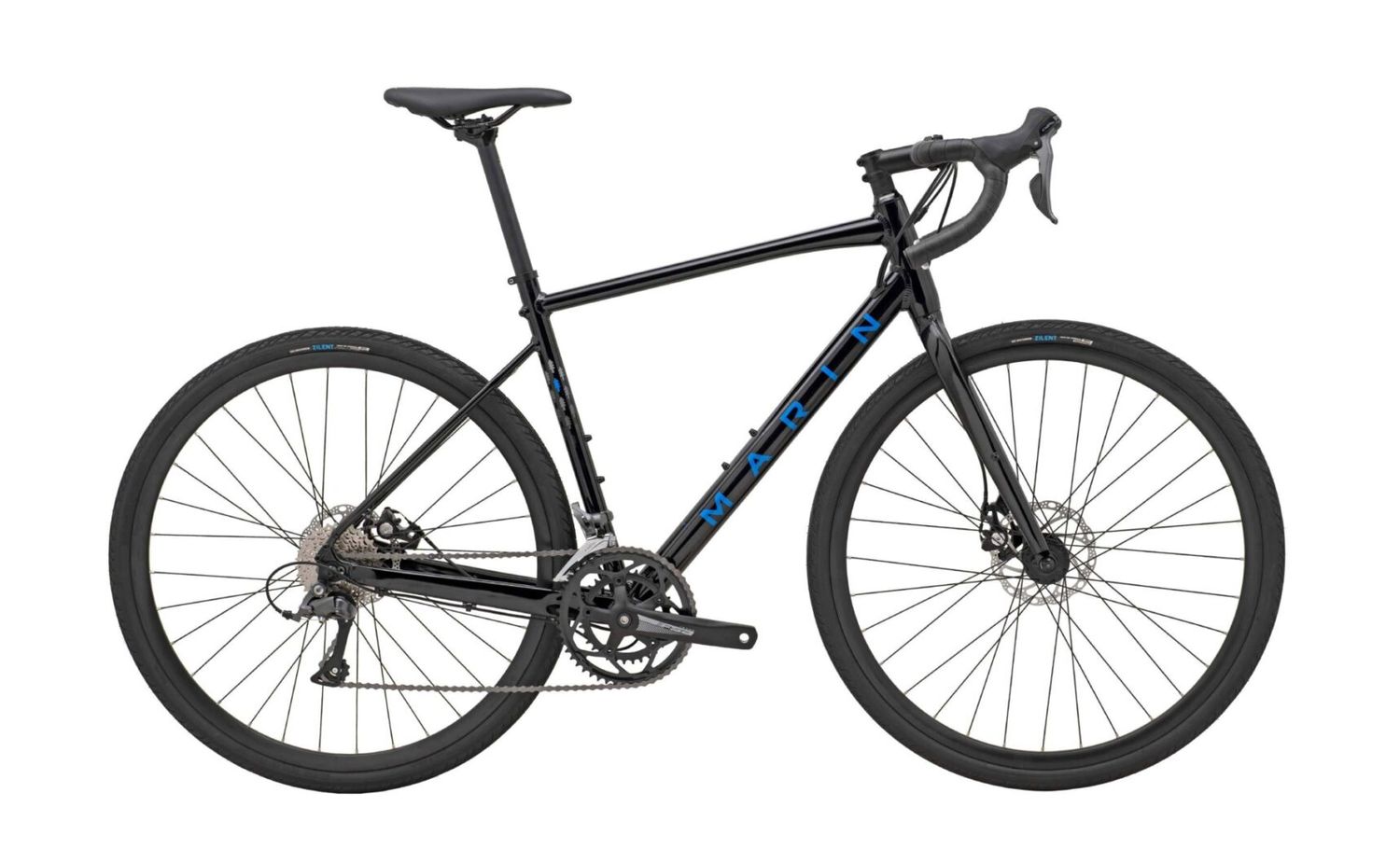

Marin Gestalt

Frame
• Series 2 Beyond Road, 6061 Aluminum
• 700C Wheels
• Relieved Head Tube and Bottom Bracket
• Internal Cable Routing
• Disc-Specific Forged Dropouts with Mudguard & Rack Mounts

Fork
• 6061 Aluminum, Straight-Blade
• Post-Mount Disc

Wheels

• Rims: Marin Aluminum Double Wall, 19mm Inner Width, 25mm Tall, Disc Specific
• Front Hub: Forged Aluminum Alloy, 6-Bolt Disc, 32H
• Rear Hub: Forged Aluminum Alloy, 6-Bolt Disc, 32H
• Spokes & Nipples: 14g Black Stainless Steel
• Tires: WTB Exposure Comp, 700x36

Drivetrain

• Front Derailleur: Shimano Claris
• Rear Derailleur: Shimano Claris 8-Speed
• Shifters: Shimano Claris, 2x8-Speed
• Crankset: FSA Tempo Compact, 50/34T
• Bottom Bracket: Sealed Bearing, Square Taper
• Cassette: SunRace 8-Speed, 11-32T
• Chain: KMC Z8

Brakes

• Front Brake: Tektro MD-C400 Road Mechanical, 160mm Rotor
• Rear Brake: Tektro MD-C400 Road Mechanical, 160mm Rotor
• Brake Levers: Shimano with Integrated Shifters

Cockpit

• Handlebar: Marin Butted Alloy, Compact, 12º Flared Drop
• Stem: Marin 3D Forged Alloy
• Grips: Marin Perforated Tape
• Headset: FSA No.8B

Seating

• Seatpost: Marin Alloy, 27.2mm
• Saddle: Marin Beyond Road Concept

Pedals

• Marin Oso OEM Nylon Platform
