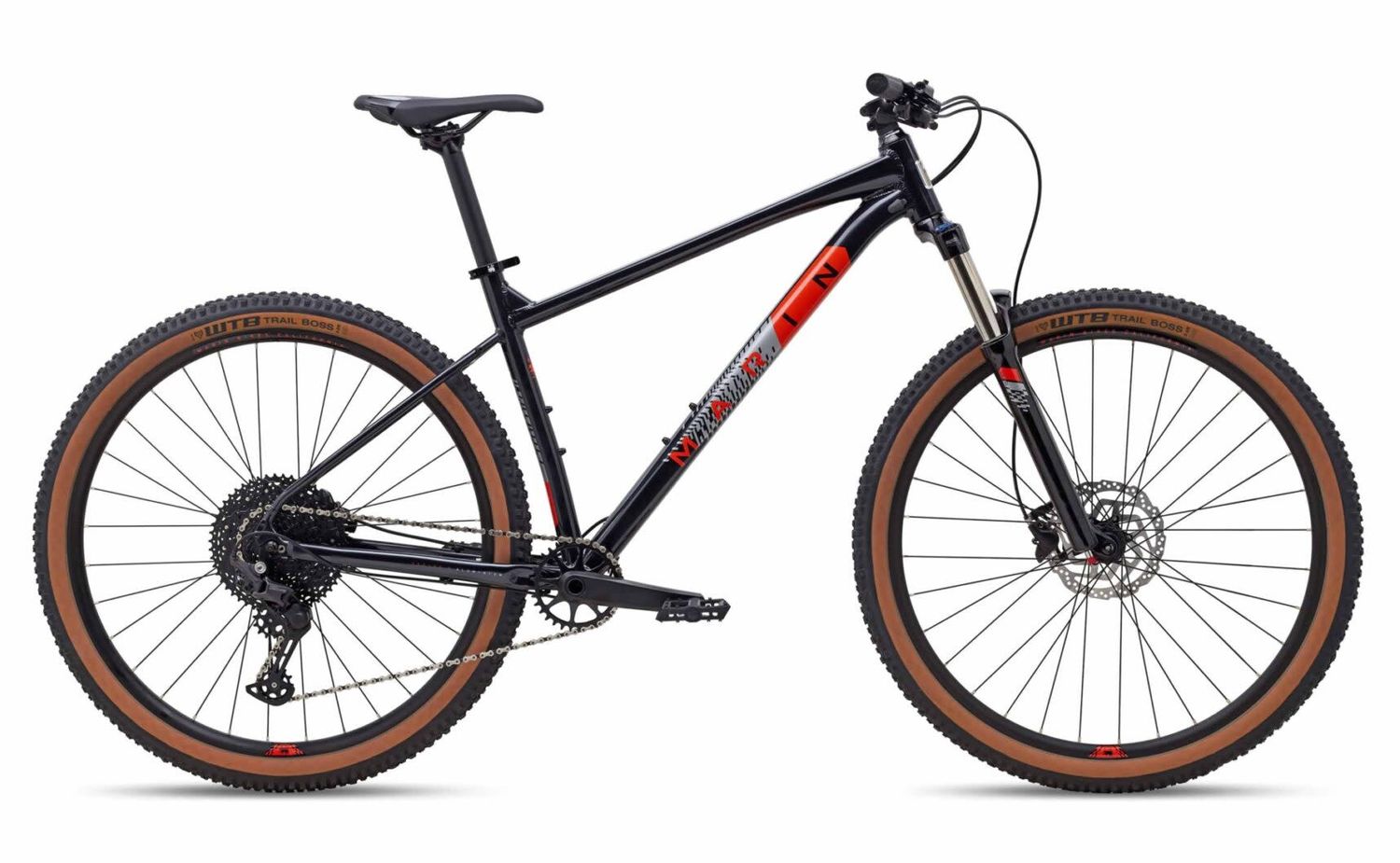

Marin Bobcat Trail 5 29"

Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB Shell, 141mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Front Suspension
SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout
42mm (27.5") / 46mm (29") Offset

Rims
Marin Aluminum Double Wall, 29mm Inner Width, Pinned Joint, Disc Specific, Tubeless Compatible

Hubs

• Front: Forged Alloy, Disc, 32H
• Rear: Forged Alloy, Disc, 32H

Spokes
14g Black Stainless Steel

Tires
WTB Trail Boss Comp, 27.5/29 x 2.25”, Wire Bead

Drivetrain

• Rear Derailleur: Shimano CUES U6000GS w/ Clutch
• Front Derailleur: —
• Shift Lever: Shimano CUES 11-Speed
• Crankset: Alloy Crank, Steel Narrow-Wide Chainring, 32T
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Chain: KMC LG
• Cassette: Shimano CUES CSLG400, 11-Speed, 11–48T

Brakes

• Front: Tektro M280 Hydraulic Disc, 180mm Rotor
• Rear: Tektro M280 Hydraulic Disc, 160mm Rotor
• Brake Levers: Tektro M280 Hydraulic

Cockpit

• Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width
• Stem: Marin Alloy, 31.8mm Clamp, 45mm
• Grips: Marin MTB, Closed End
• Headset: —

Seatpost
Marin Alloy, 30.9mm

Saddle
Marin MTB

Pedals
Nylon Platform
