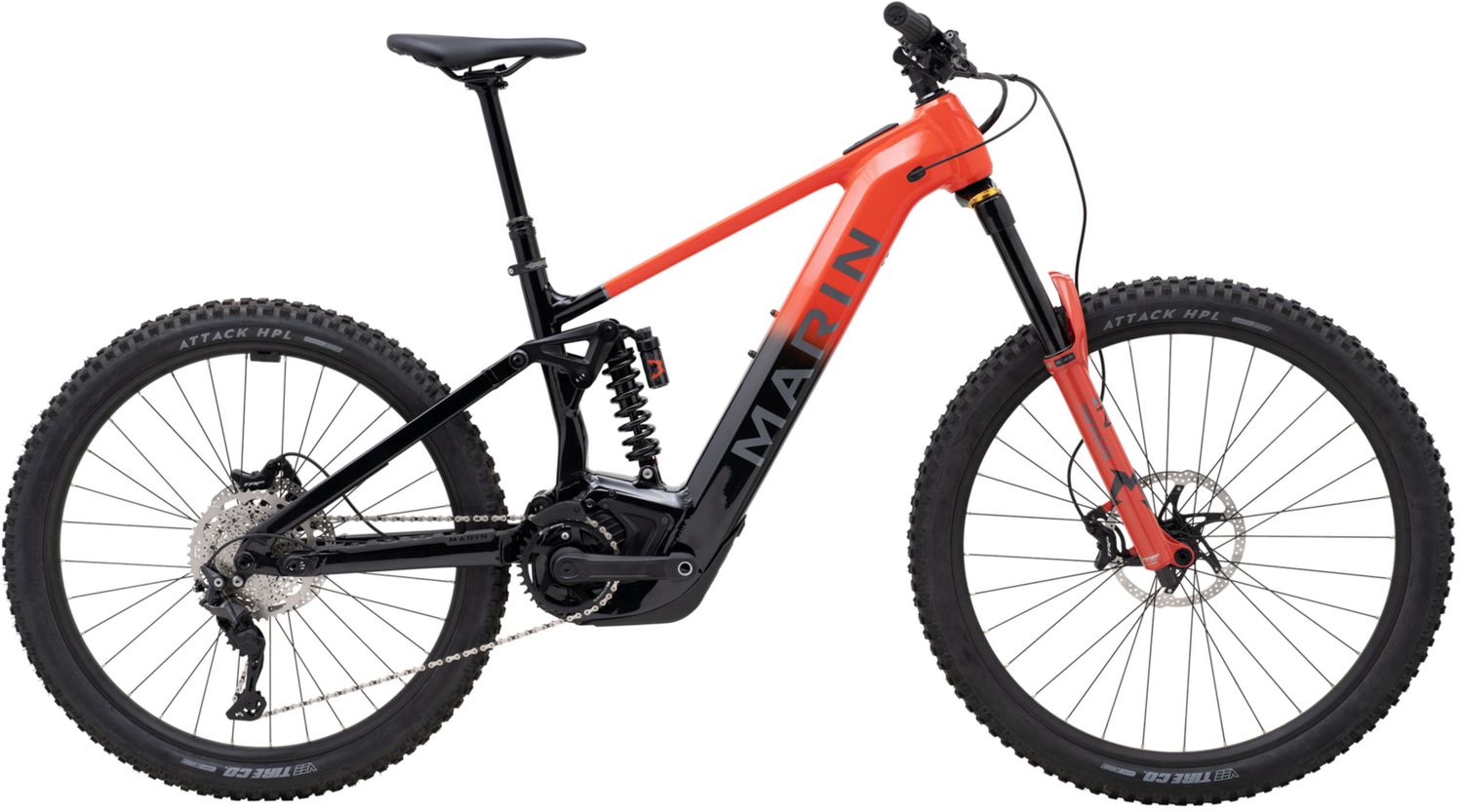

Marin Alpine Trail E1 Bosch

SPECIAL ORDER ONLY

Complete spec list and geo available at marinbikes.com.

• Frame

  All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

• Front Suspension

  Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset

• Rear Suspension

  Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb

• Rim

  Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

• Hub Rear

  Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

• Hub Front

  Shimano FH-TC500, 110x15mm, Centerlock, 32H

• Spokes

  14g Black Stainless Steel

• Tires

  Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"

• Derailleur Rear

  Shimano CUES RD-U6000 GS, 10-Speed

• Derailleur Front

  -

• Shift Lever

  Shimano CUES SL-U6000-10R, 10-Speed

• Crankset

  e*thirteen e*spec Plus, 160mm Length

• Motor

  Bosch Performance Line CX, 85Nm, 20MPH (US, NZ)/25 km/h (Rest of World) Top Assisted Speed

• Chain

  Shimano LG500

• Cassette

  Shimano CS-LG300-10, 11-48T

• Brakes Front

  TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• Brakes Rear

  TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

• Brake Levers

  TRP Slate EVO

• Handlebar

  Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 35mm

• Grips

  Marin Grizzly Lock-On

• Headset

  FSA Custom Headset, Adjustable HTA Design

• Seatpost

  TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

• Saddle

  Marin Speed Concept

• Pedals

  -

• Battery

  Bosch PowerTube 750 Wh

• Display

  Bosch BRC3100 Systems Controller

• Switch

  Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

• Extras

  e*thirteen e*Spec Chainguide

• Extras

  Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle, Bosch EB12.110.016; 2A Charger

• Range, Charging Time

  31-78 miles/50-125km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
