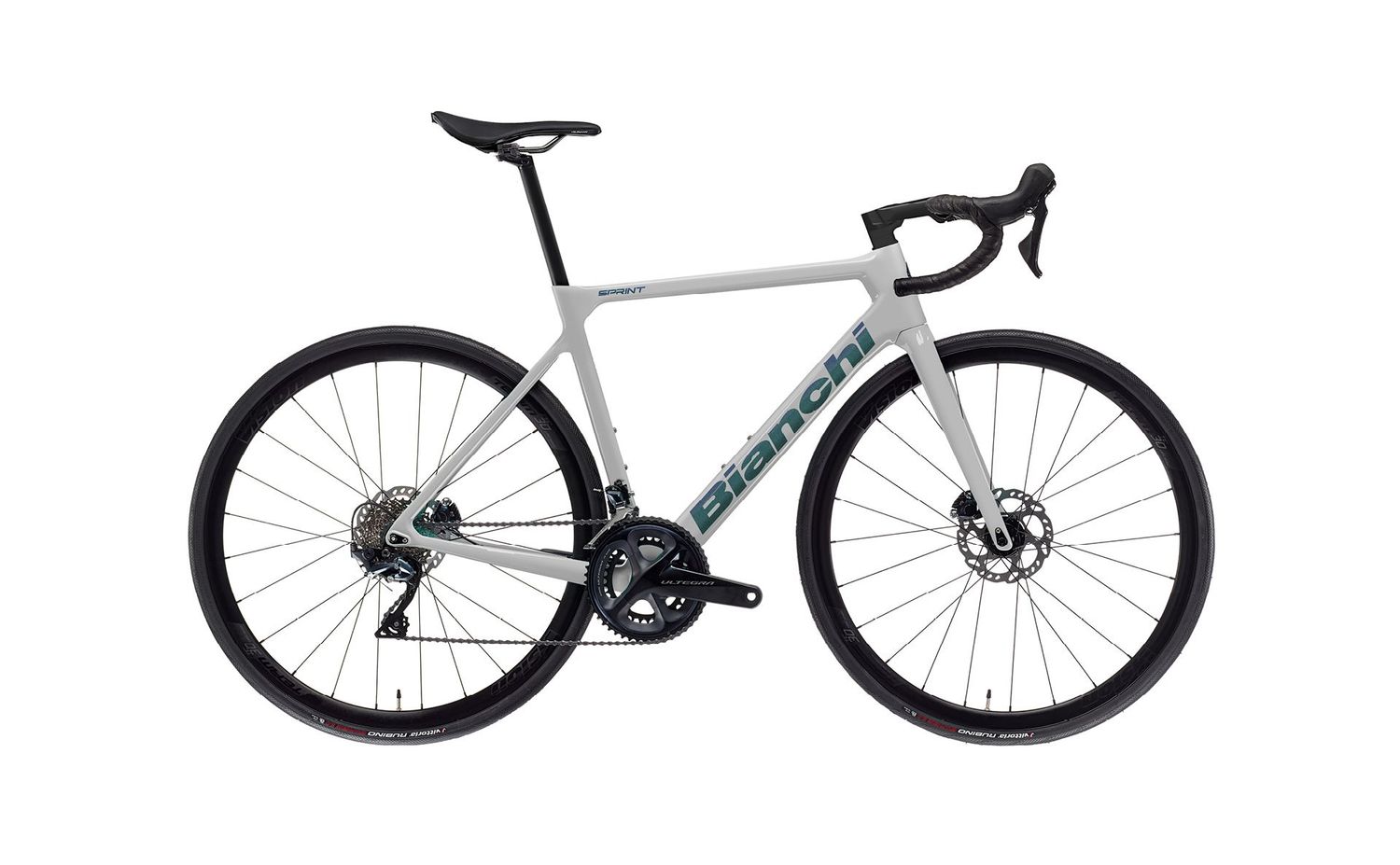

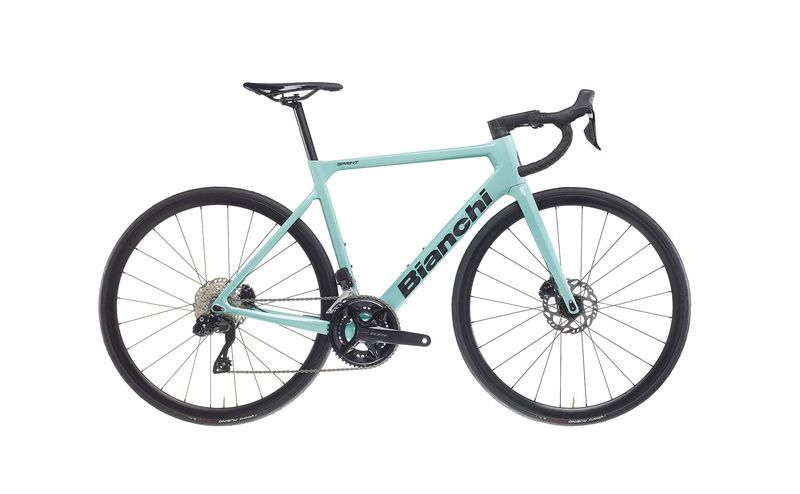

Bianchi Sprint 105

SPECIAL ORDER ONLY

Complete spec list and geo available at bianchi.com.

• ---

  Frameset

• Frame: Sprint carbon monocoque, mechanical/electronic compatible, BB PressFit 86.5x41, tapered head tube (1.4"–1.5"), integrated seat clamp, full carbon dropouts, disc brake flat mount, 12x142mm thru axle
  Available Sizes: 47 / 50 / 53 / 55 / 57 / 59 / 61 cm
• Fork: Full carbon Aero Road, tapered 1.4"–1.5", disc brake flat mount, 12x100mm thru axle
• Headset: ACROS & FSA, internal cable routing

Drivetrain

• Shifters: Shimano 105 hydraulic disc brake for road (160mm rotor)
• Rear Derailleur: Shimano 105, 12-speed, direct mount, max 36T
• Front Derailleur: Shimano 105, 12-speed, 16T capacity, compatible with 50–54T chainrings
• Crankset: Shimano 105, 12-speed
  • Crank length: 170mm (47–53cm), 172.5mm (55–59cm), 175mm (61cm)
• Bottom Bracket: Shimano SM-BB72-41B, press-fit road bearing with inner cover
• Chain: Shimano

Brakes

• Brakes: Shimano hydraulic disc (integrated with shifters)
• Rotors: Shimano SM-RT70, 160mm center lock

Wheels

• Wheelset: Velomann alloy, disc brake compatible
  • 30mm rim profile, team TC j-bend hubs
  • Round 2mm black spokes
  • Clincher 622x19C with rim tape
  • Axles: Front 12x100mm / Rear 12x142mm
• Tires: Vittoria Rubino IV G2.0 Graphene, 700x25c, 60 TPI

Cockpit

• Stem: Velomann Alloy 6061, -7°
  • Length: 80mm (44cm), 90mm (47/50cm), 100mm (53cm), 110mm (55/57cm), 120mm (59/61cm)
• Handlebar: Velomann Compact, Alloy 6061
  • Diameter: 31.8mm, Reach: 80mm, Drop: 130mm
  • Width: 400mm (44–53cm), 420mm (55–59cm), 440mm (61cm)
• Grips: Bianchi cork, black

Saddle

• Seatpost: Velomann Alloy 6061, 15mm offset, 27.2mm diameter
  • Length: 300mm (44cm), 350mm (47–61cm)
• Saddle: Velomann Seta
