Marin San Quentin 2 29"

Buyers in the USA are responsible for arranging their own shipping. For more information, please contact the shop directly.

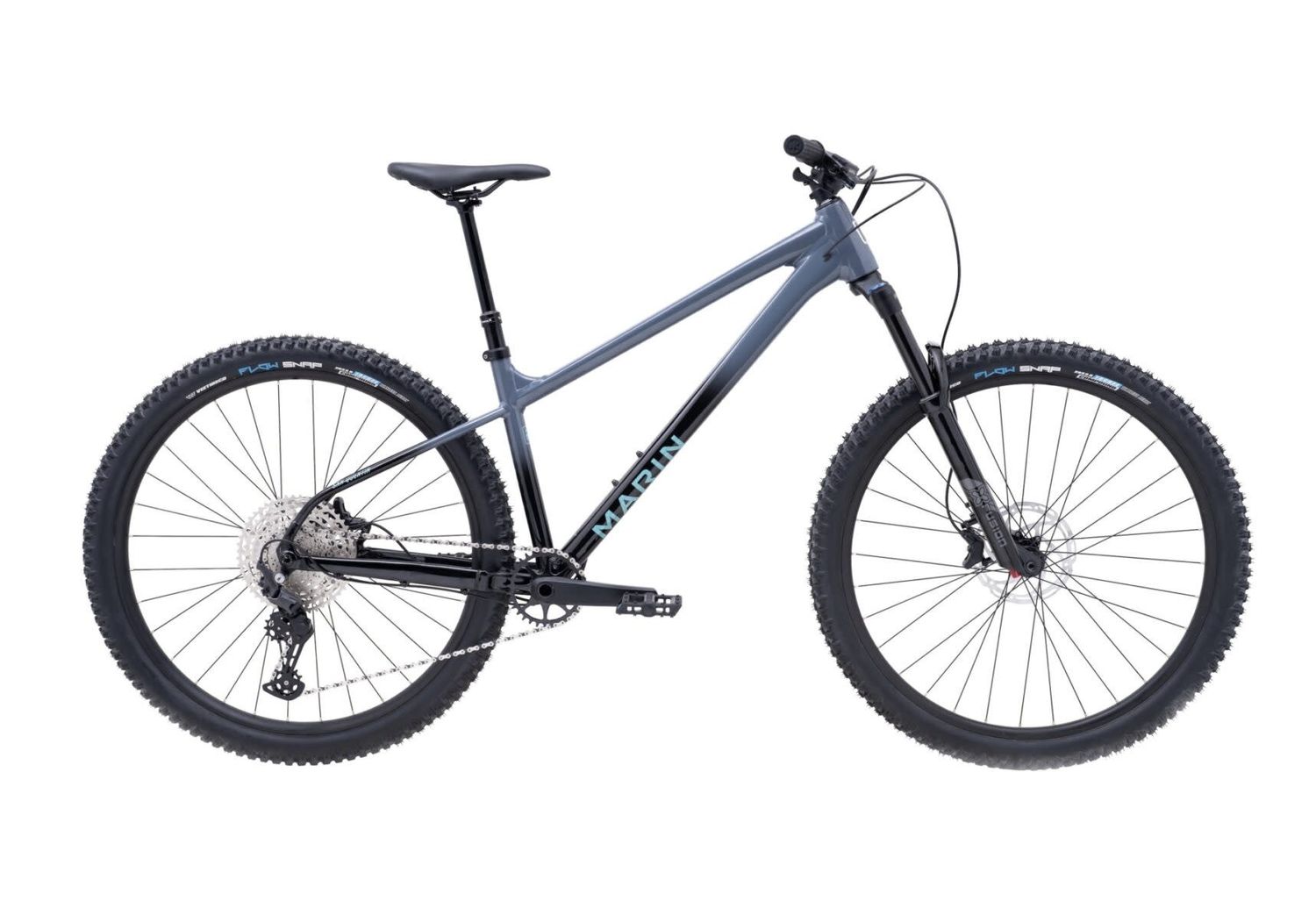

Marin San Quentin 29" 2

(Complete spec list and geometry available at marinbikes.com)

Frame & Fork

• Frame

• All-New Series 3 6061 Aluminum

• Double-butted tubing

• Internal cable routing

• 12×148mm thru-axle

• 73mm threaded BB

• Front Suspension

• X-Fusion Slide Boost RC, 29”

• 140mm travel

• Compression and rebound adjustment

• 110×15mm thru-axle

• 44mm offset

Wheels & Tires

• Rim: Marin aluminum double wall, disc specific

• 29mm inner width

• Pinned joint, 32H, tubeless compatible

• Hubs

• Rear: Shimano FH-TC500, 148×12, MicroSpline freehub, Centerlock disc, 32H

• Front: Shimano HB-TC500, 110×15mm

• Spokes/Nipples: 14g black stainless steel

• Tires: Vee Tire Co. Flow Snap, 29×2.6”

• MPC compound

• Wire bead

Drivetrain

• Rear Derailleur: Shimano Deore, 11-speed, SGS

• Shift Lever: Shimano Deore, 11-speed, SL-5100-R

• Crankset: Marin forged alloy w/ hollow spindle, integrated steel 32T narrow-wide chainring, Boost spacing

• Bottom Bracket: External sealed cartridge bearing

• Chain: Shimano CN-LG500

• Cassette: Shimano CS-5100-11, 11–51T

Brakes

• Front Brake: Tektro M535, 4-piston hydraulic, 180mm rotor

• Rear Brake: Tektro M535, 4-piston hydraulic, 180mm rotor

• Brake Levers: Tektro M535

Cockpit

• Handlebar: Marin mini-riser, 6061 double-butted aluminum

• 780mm width, 28mm rise

• 5° up, 9° back

• Stem: Marin 3D-forged alloy, 35mm

• Grips: Marin Grizzly lock-on

• Headset: FSA No.57E, semi-sealed cartridge bearings, 1⅛” × 1½”

Seat & Post

• Seatpost: TranzX YSP18, 1× remote, 170mm travel (all sizes), 30.9mm

• Saddle: Marin Speed Concept

Pedals

• Pedals: Marin Oso OE flat

Extras

• None listed
