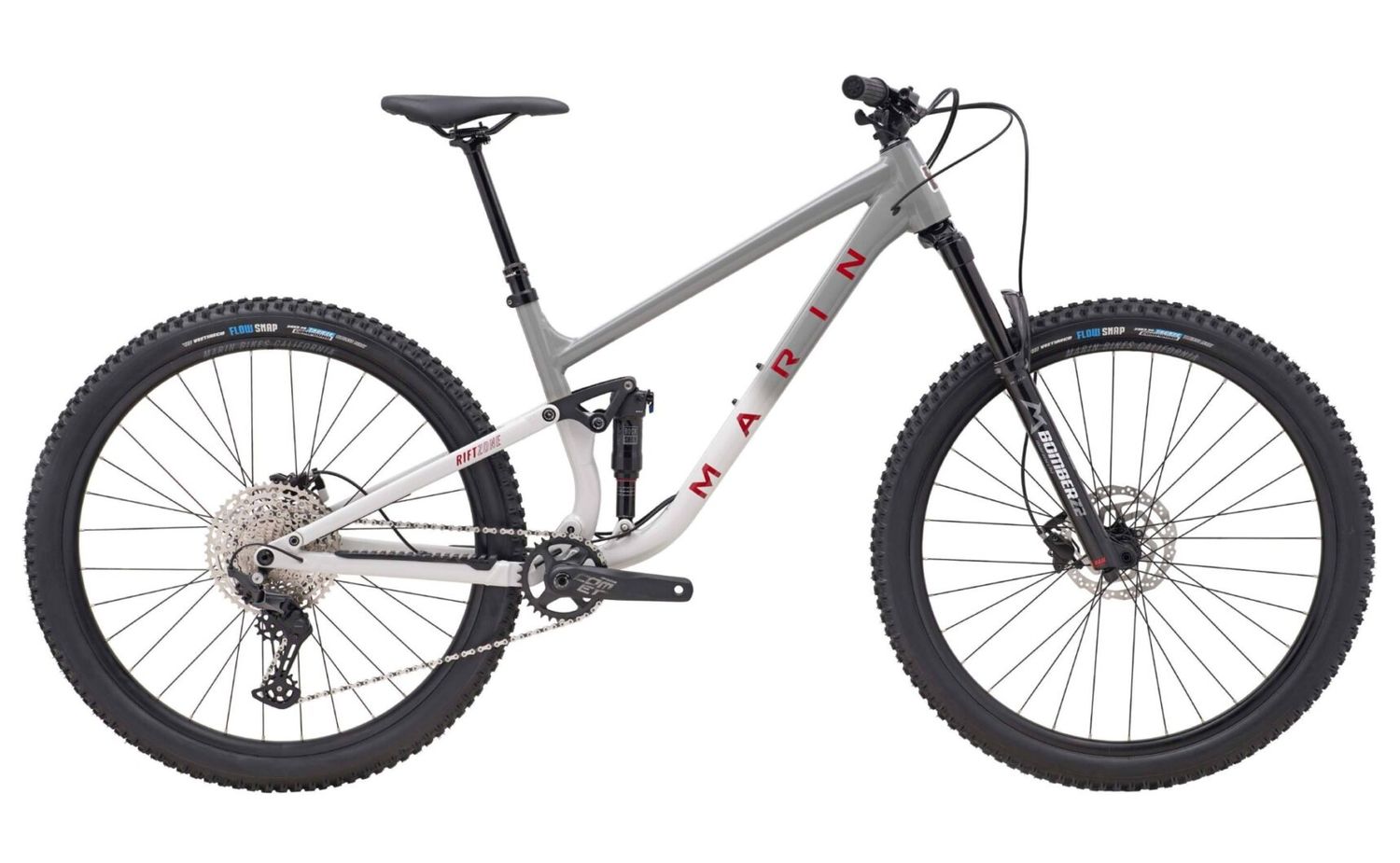

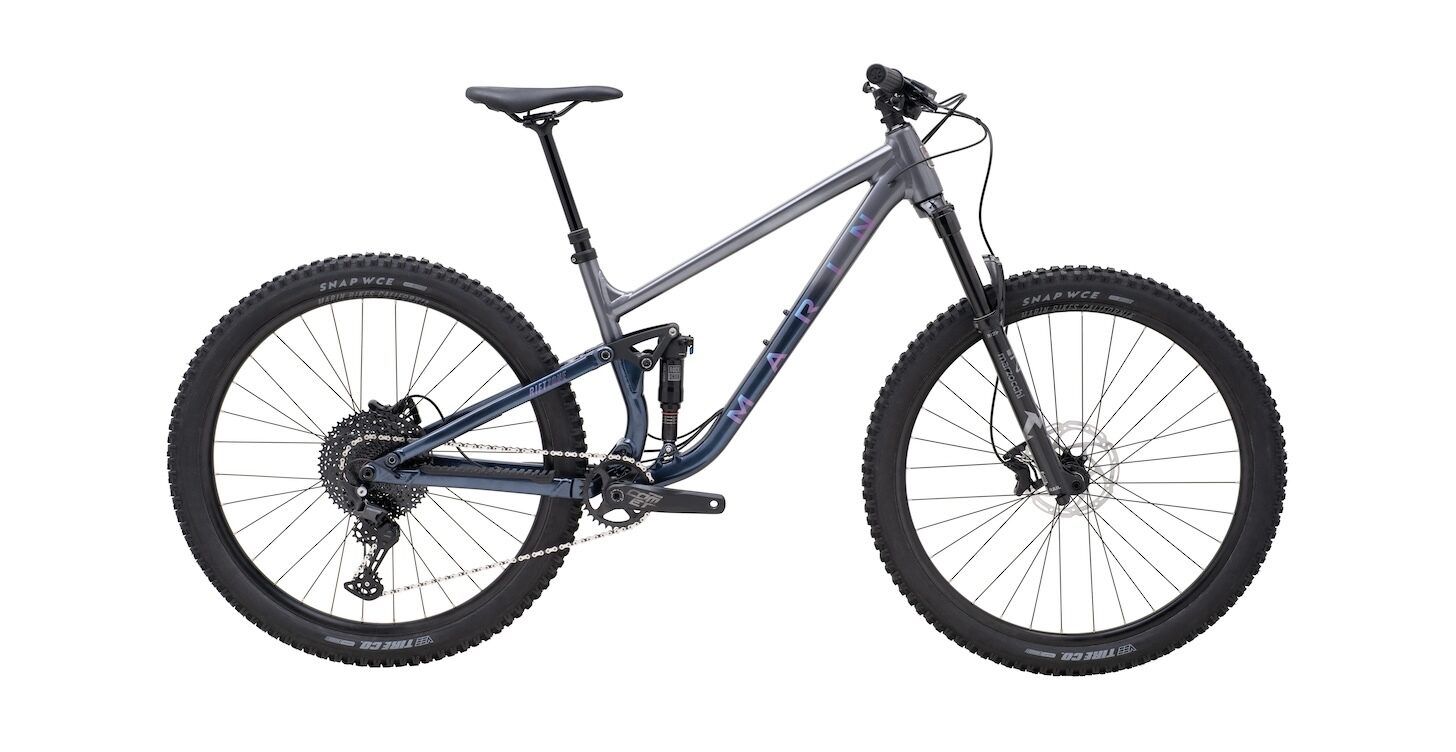

Marin Rift Zone 2 29"

Buyers in the USA are responsible for arranging their own shipping. For more information, please contact the shop directly.

Marin Rift Zone 29" 2

(Complete spec list and geometry available at marinbikes.com)

Frame & Suspension

• Frame:

• Series 3 6061 Aluminum

• 29” wheels

• 130mm MultiTrac suspension platform

• 148×12mm Boost thru-axle

• 73mm threaded BB shell w/ ISCG05 tabs

• Front Suspension:

• Marzocchi Bomber Z2 29”

• 140mm travel

• Rail Damper with Sweep Adjustment

• Kabolt bolt-on axle

• 44mm offset

• Rear Suspension:

• RockShox Deluxe Select RT

• DebonAir air sleeve

• Rebound adjustment

• Custom tune

• 210×55mm, M8×25mm hardware

Wheels & Tires

• Rims:

• Marin double wall alloy

• 29mm inner width

• Pinned joint, disc specific

• 32H, tubeless compatible

• Hubs:

• Rear: Shimano FH-TC500, 148×12mm, disc, HG freehub body

• Front: Shimano HF-TC500, 110×15mm, Centerlock, 32H

• Spokes & Nipples:

• 14g black stainless steel

• Tires:

• Vee Tire Co. Snap WCE, 29×2.35”

• Top 40 compound, GXE Core

• 90 TPI, tubeless compatible

Drivetrain

• Rear Derailleur: Shimano Deore, 12-speed, SGS

• Front Derailleur: —

• Shift Lever: Shimano Deore, 12-speed, SL-M6100-R

• Crankset: FSA Comet, modular 1×, 32T direct-mount chainring, MegaTooth technology, Boost spacing

• Bottom Bracket: External sealed cartridge bearing

• Chain: KMC X-12 (silver and black)

• Cassette: SunRace, 12-speed, 11–51T

Brakes

• Front Brake: Tektro HD-M280 hydraulic, 180mm rotor

• Rear Brake: Tektro HD-M280 hydraulic, 180mm rotor

• Brake Levers: Tektro HD-M280 hydraulic

Cockpit

• Handlebar: Marin mini-riser, 6061 double-butted aluminum

• 780mm width, 28mm rise

• 5° up, 9° back

• Stem: Marin 3D forged alloy, 35mm

• Grips: Marin Grizzly lock-on

• Headset: FSA No.57E, semi-sealed cartridge bearings, 1¹/₈” × 1½”

Seat & Post

• Seatpost: TranzX YSP18JL, 1× remote

• S: 150mm travel

• M/L/XL: 170mm travel

• 30.9mm diameter

• Saddle: Marin Speed Concept

Pedals & Extras

• Pedals: — (not included)

• Extras: Bolt-on thru-axle
