Marin Fairfax 1

Buyers in the USA are responsible for arranging their own shipping. For more information, please contact the shop directly.

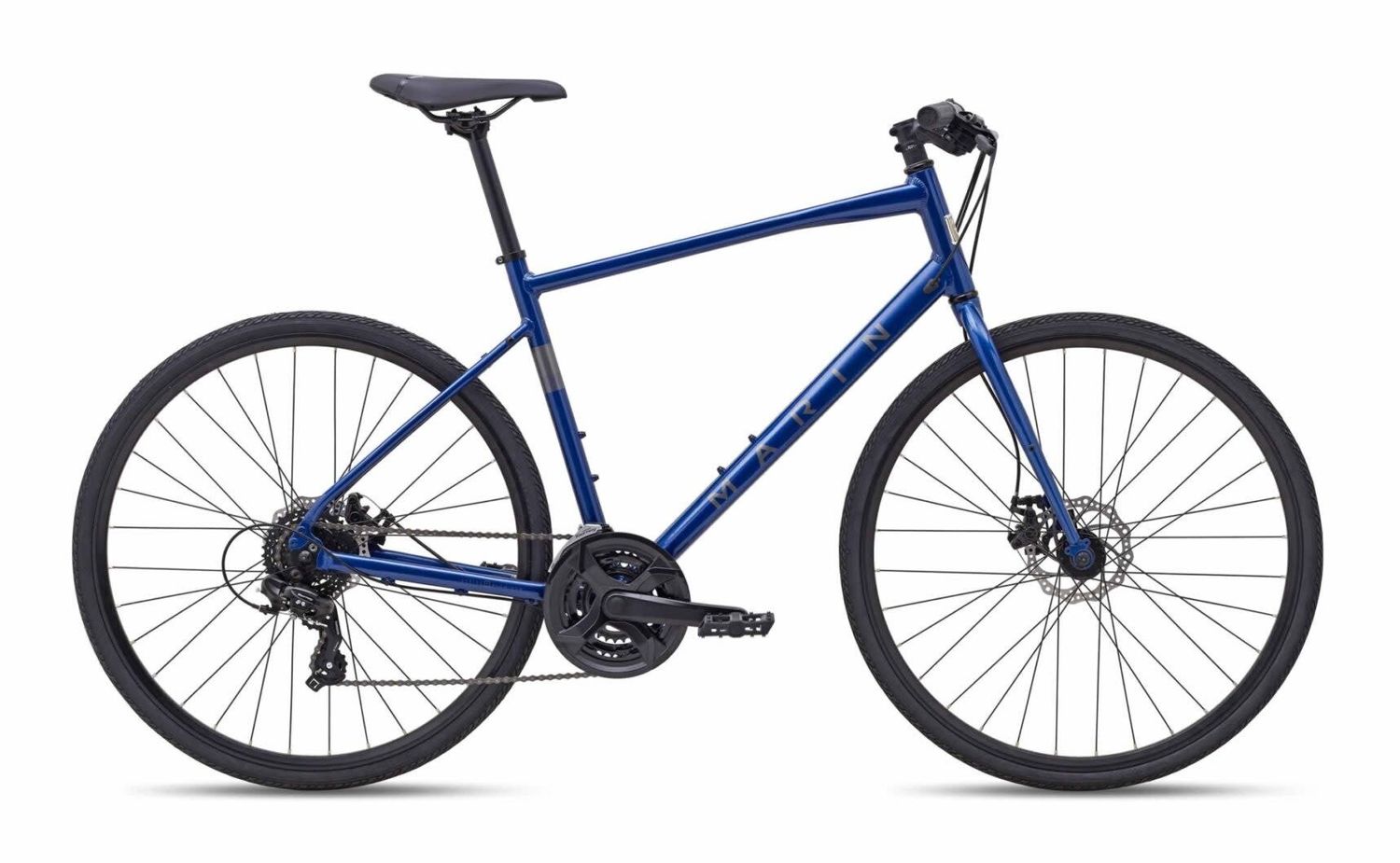

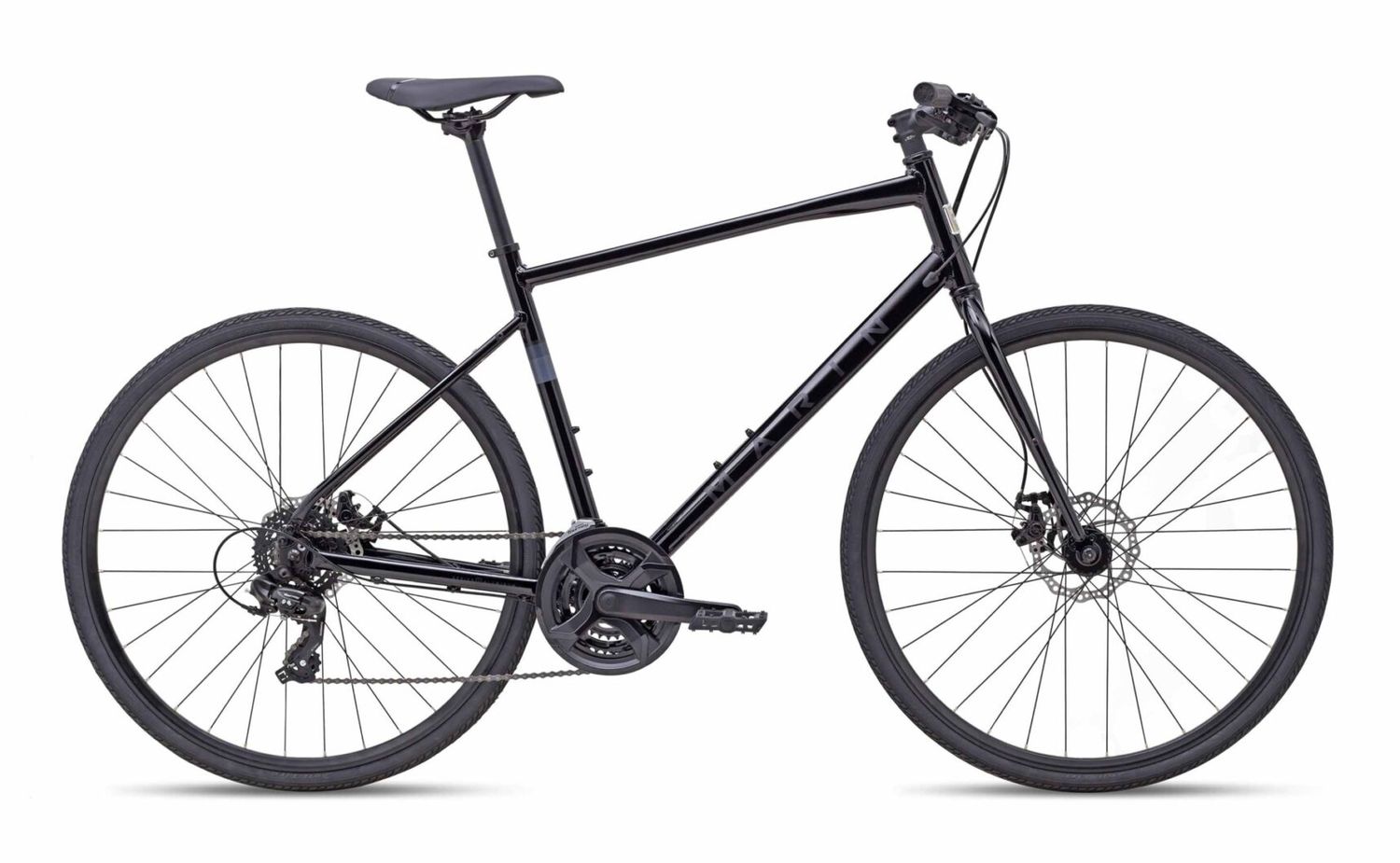

Marin Fairfax 1

Complete spec list and geometry available at Marin Bikes.

Frame

• Series 1 Fitness, 6061 Aluminum

• 700C wheels

• Disc brake

• Internal cable routing

• Fender, rack, and kickstand mounts

Fork

• CrMo Steel, Straight Blade

• Disc mount

• QR dropouts

• Fender and rack eyelets

Wheels & Tires

• Rims: Marin aluminum double wall, disc specific

• Hubs

• Rear: Forged aluminum alloy, disc, 32H

• Front: Forged aluminum alloy, disc, 32H

• Spokes/Nipples: 14g stainless steel

• Tires: Fitness 700C × 35mm

Drivetrain

• Rear Derailleur: Shimano Tourney, 7-speed

• Front Derailleur: Shimano TY510

• Shift Lever: Shimano shifter/brake lever combo, 3×7-speed

• Crankset: Alloy crank, steel chainrings, 48/38/28T, ring guard

• Bottom Bracket: Sealed cartridge bearings, square taper

• Chain: KMC Z8

• Cassette: SunRace 7-speed, 11–34T

Brakes

• Front Brake: Clark’s CMD-23 mechanical disc, Shimano pad compatible, 160mm rotor

• Rear Brake: Clark’s CMD-23 mechanical disc, Shimano pad compatible, 160mm rotor

• Brake Levers: Shimano (integrated shifters)

Cockpit

• Handlebar: Marin alloy flat, 31.8mm clamp

• Stem: Marin alloy threadless

• Grips: Marin Commute

• Headset: FSA, threadless

Seat & Post

• Seatpost: Marin alloy, 27.2mm

• Saddle: Marin Fitness Plush

Pedals

• Pedals: Marin Oso OEM nylon platform
